Generate XML from XSD

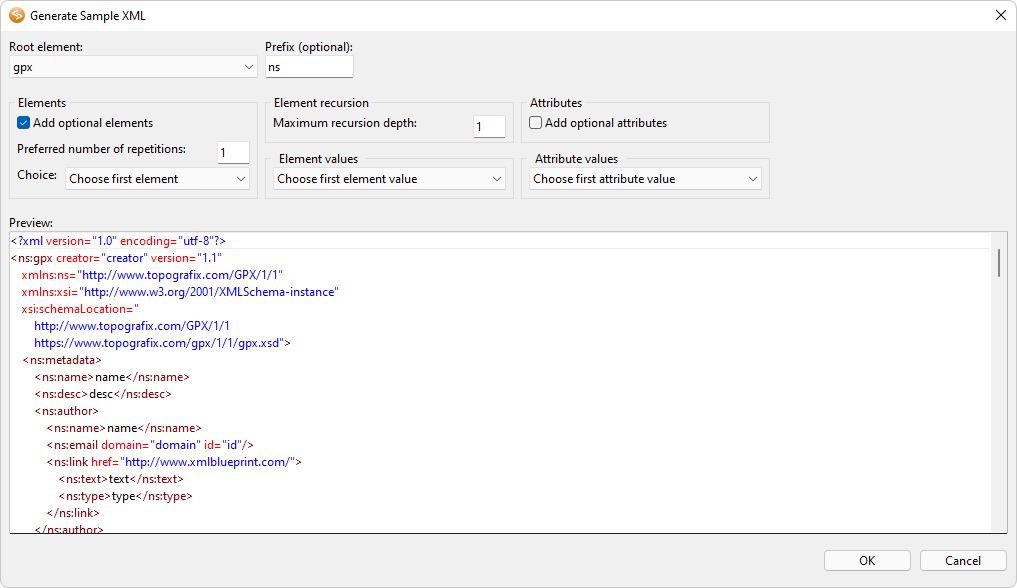

To generate XML from XSD open the XSD in XMLBlueprint and select Schema > Generate Sample XML from XSD... to open the Generate Sample XML dialog.
|
| • | Root Element -- Choose the root element of the XML to be generated. |
| • | Prefix -- Specifies an optional prefix for the namespace of the root element. The prefix is invisible if the root element has no namespace. |
Elements
|
| • | Add optional elements -- If checked optional elements will be generated. |
| • | Preferred number of repetitions -- Specifies the preferred number of repetitions. |
| • | Choice -- Specifies what element will be generated: first, last, or random. |
Element recursion
|
| • | Maximum recursion depth -- Specifies the maximum recursion depth allowed. |
Element values
|
| • | Specifies what element values are generated: first, last, random, or none. |
Attributes
|
| • | Add optional attributes -- If checked optional attributes will be generated. |
Attribute values
|
| • | Specifies what attribute values are generated: first, last, random, or none. |
