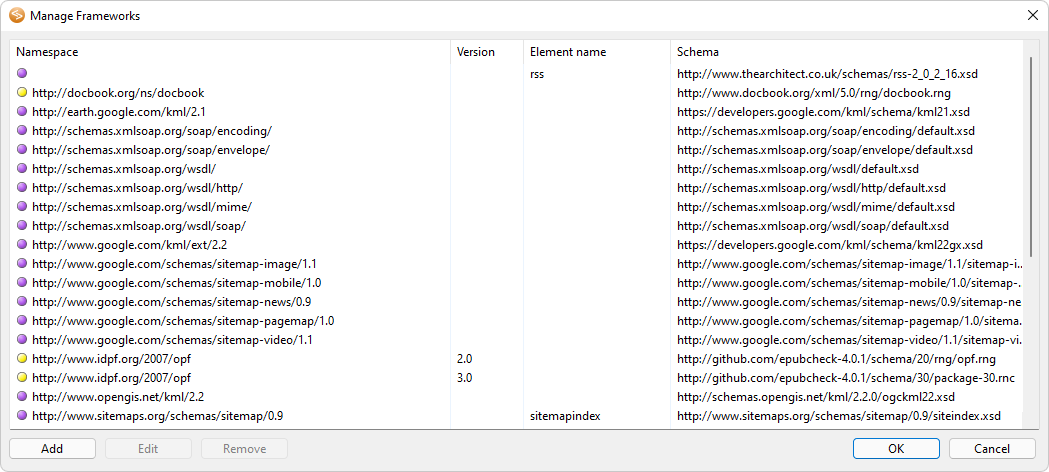

Manage Frameworks Dialog
Usually the structure of an XML Document is specified by a DTD, a Relax NG Schema or an XSD. When no schema is specified, XMLBlueprint will try to find the associated schema by inspecting the Frameworks.
|
| • | Namespace -- Specifies the namespace of the root element. |
| • | Version - Specifies the version of the schema, identified by attribute "version" in the root element. |
| • | Element Name -- Specifies the local element name of the root element. |
| • | Schema - The actual schema. Only Relax NG Schemas and XSDs are supported, indicated by a colored icon. |
An Example
Suppose we open the following KML*) document in XMLBlueprint:
When you try to validate it by pressing F8, XMLBlueprint will display an error message:
The root of the document belongs to namespace {http://www.opengis.net/kml/2.2},
but there is no actual DTD, Relax NG Schema, Schematron or XSD associated with this namespace.
We search for the KML schema using Google ("KML 2.2 schema") and find the official XSD for KML 2.2:
We will now associate the KML namespace with the KML schema. Select Options > Frameworks..., press Add and enter:
Element Name: (leave empty)
Press OK. You should now see the newly added schema highlighted in the Manage Frameworks dialog. Press OK again.
Press F8 again to validate the KML document. XMLBlueprint will now report no errors.
*) KML (Keyhole Markup Language) is a file format used to display geographic data in an Earth browser such as Google Earth, Google Maps, and Google Maps for mobile. The example is taken from Google's website.
